ALPHA TECHNOLOGIES is production jewelry equipment in china. As the professional manufacture, we would like to provide you jewelry equipment . this Curb Chain Diamond Cutting Machine can be diamond cutting different chain, if you need to it, we will offer you the best after-sale service and timely delivery.

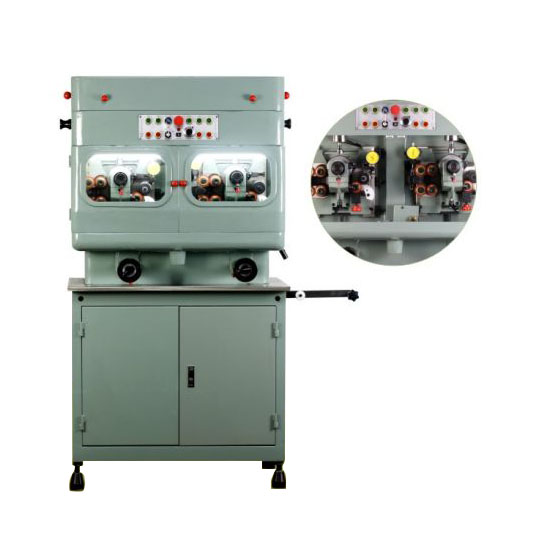

This ALPHA TECHNOLOGIES Curb Chain Diamond Cutting Machine have two vertical heads diamond cutting,this cable chain diamond machine prearranged for horizontal heads, suitable for the flat and edges lapping on various medium and small chains. This cable chain diamond cutting machine change different tooling can be diamond different chain.This machine is easy to operate,
The first,you need to install the proper disk for corresponding chain,install the tools with correct angle, adjust the tool to the safe distance between the chain, then start the diamond cutting head and just it to the proper distance for diamond cutting on the chains.switch the machine to automatic working mode after adjusting two side tools.
|
Chain diameter parameter |
Input power |
Rated power |
Net weight |
|
0.2mm-0.6mm |
220v/50HZ |
1800w |
650kg |
|
speed |
Size |
|
|
|
6000-8000rpm/min |
120cm*60cm*165cm |
|
|
This Curb Chain Diamond Cutting Machine replace different diamond cutting head can be diamond cutting different chain, if you want to Increase the brightness of the chain,you can replace different cutting tools, this cable chain diamond cutting machine support gold, stainless steel, 18k gold, platinum gold and 925 silver.
